Showing all 12 results

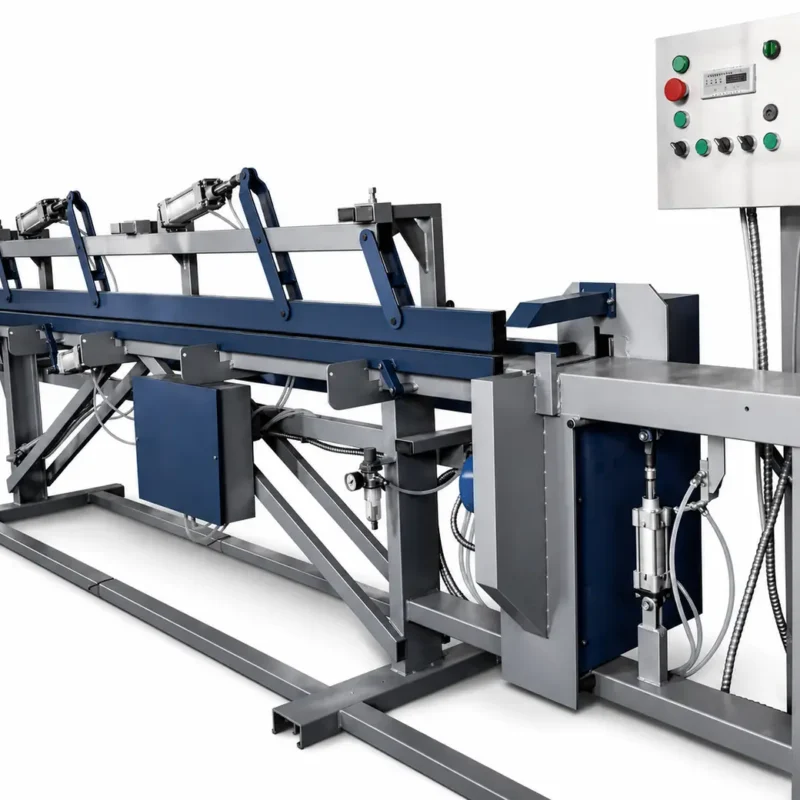

The APV-300/450/600 longitudinal wood splicing press is a modification of the PV model.
Additional functionality of this model is provided by:
– automatic lifting mechanism of the stop bar
– mechanism for pushing the finished workpiece out of the working area.

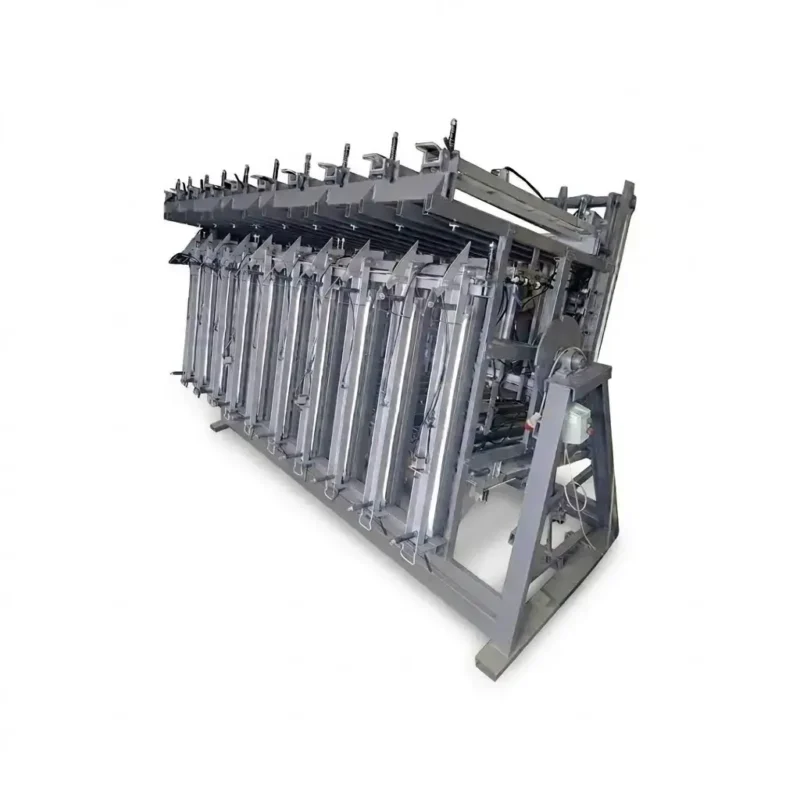

The BVU type press clamps are a full-size modification of the VU type clamps and are a reversible drum structure on the longitudinal axis, combining 8 or 12 VU type planes. They are designed for high-performance gluing of furniture boards simultaneously on 3 or 4 planes, which allows gluing up to 0.5 m3 of the workpiece per drum revolution (approx. 30 min.). The rotation of the structure occurs using a motor-reducer with reversible control.
The PV-300 type press clamps are designed for joining pre-studded workpieces of various lengths. They are equipped with upper and side clamps that align and hold the workpiece. There are 2 modifications of the clamps, which differ in purpose.
The press clamp for longitudinal splicing of wood PV-450, PV-600 is a modification of the PV-300 model. It is equipped with upper and side clamps that align and hold the workpiece. Allows for longitudinal splicing of lamellas for 3-layer timber, “lining”, door posts and floorboard blanks.
Press clamps type VE-10 are designed for gluing furniture boards, panels, stair steps up to 100 mm thick and three-layer timber. The workpiece is fixed relative to the base using sliding crossbars with screw clamps. For ease of use, the clamps are equipped with adjustable stops.

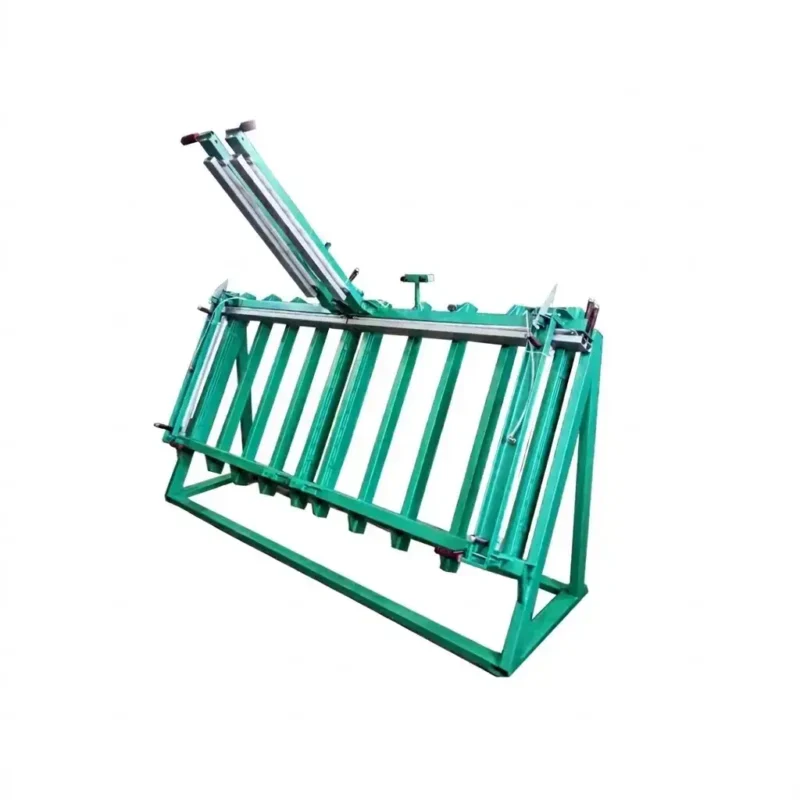

The VE-12 type press clamps are a modification of the VE-10 type clamps. They are used for the production of 3-layer timber, assembly of construction I-beams.
The increased width of the clamps (120 mm) also allows for gluing the lamella onto door posts.
The stroke of the main clamps is 40-60 mm.

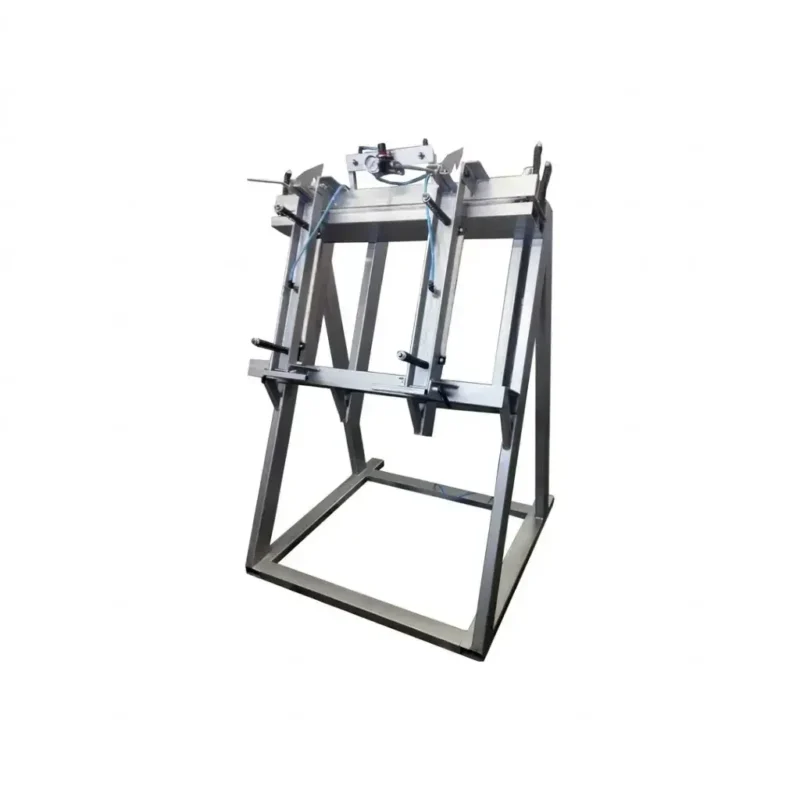

Press clamps type VE-16 are a modification of clamps type VE-10/12. The main purpose of this type of press clamp is industrial production of glued door risers and large-section joinery products.

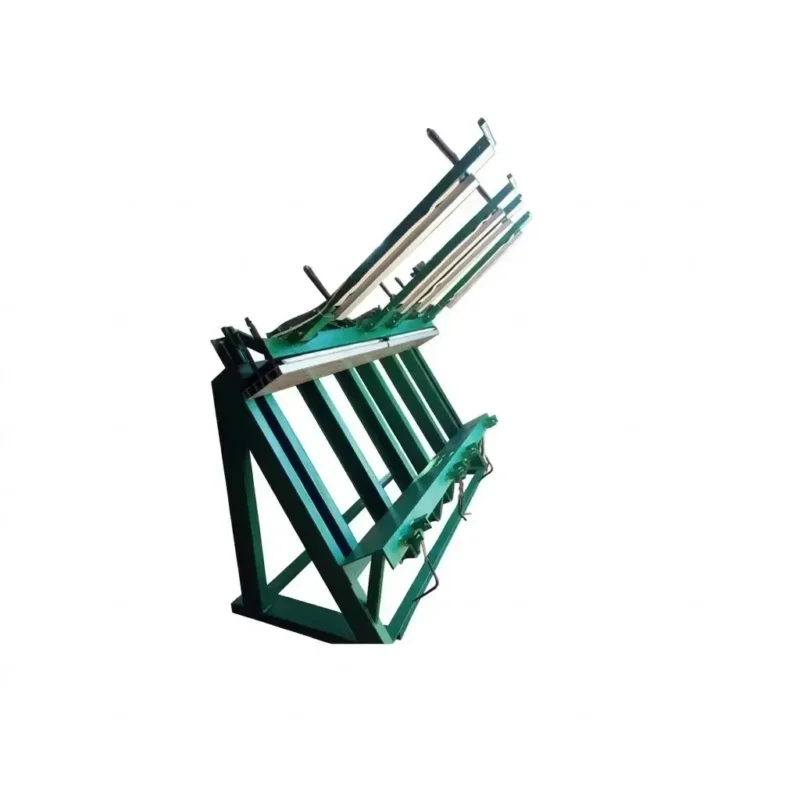

Press clamps type VE-24 are a modification of clamps type VE-10. They are used for the production of 3-layer timber, gluing door risers with lamellas, production of 3-layer parquet boards, gluing timber up to 240 mm wide.
The VS press clamps are designed for mass assembly of frame joinery (e.g. doors and windows).
The simplicity of the design and ease of retooling allows for the assembly of joinery of various formats.
The clamp has one working plane. The force of the pneumatic cylinders is regulated by the pressure in the system.
The press can be powered by a conventional car compressor with a receiver volume of 24 liters.
Press clamps type VUB are a modification of clamps type VU. A distinctive feature is the presence of an additional side clamp, which allows, in addition to gluing furniture panels, to assemble window and door units by pressing them from both sides.

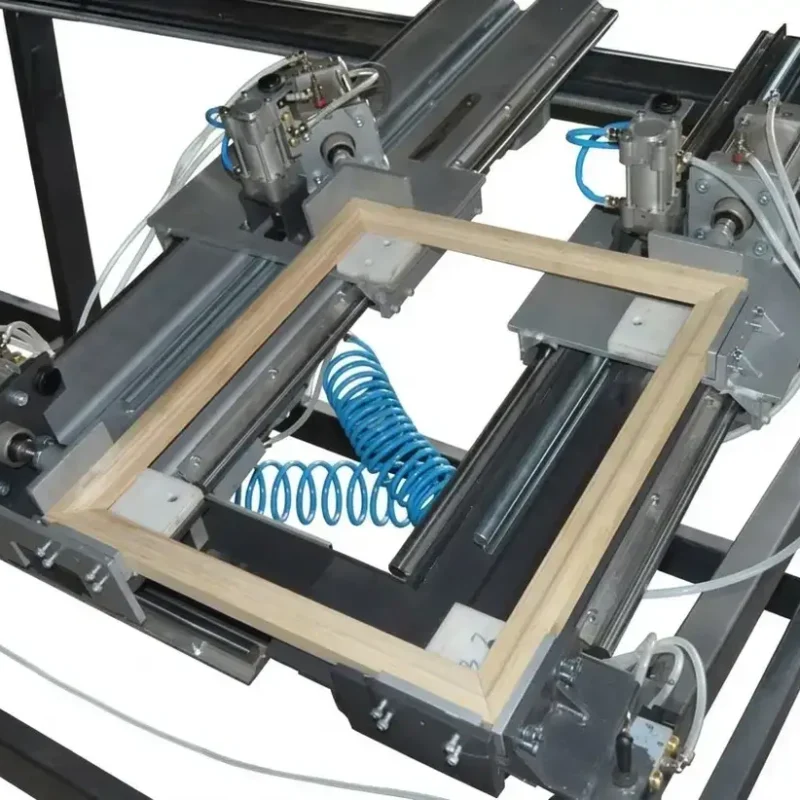

VSF press clamps are specialized press clamps, the main purpose of which is mass assembly of furniture facades with a cutting angle of 45 and 90 degrees. The clamp has one working plane.
Press clamps type VU Press clamps type V are designed for gluing furniture panels, panels, stair steps, etc.
One side of the clamp is equipped with a horizontal pneumatic force clamp.
The workpiece is fixed relative to the base using a frame clamp, also driven by pneumatics.
