Cable Measurement Unit BIK-3
₴7 020
The unit is designed to measure the length of cables, wires, etc. long products. The measurement error is no more than ± 0.5%, although with an increase in the measured length, the relative error decreases and, for example, at 100 m the absolute error is up to 10 cm, i.e. only 0.1%.
Delivery methods
- We ship by any transport company or pick up yourself
Description

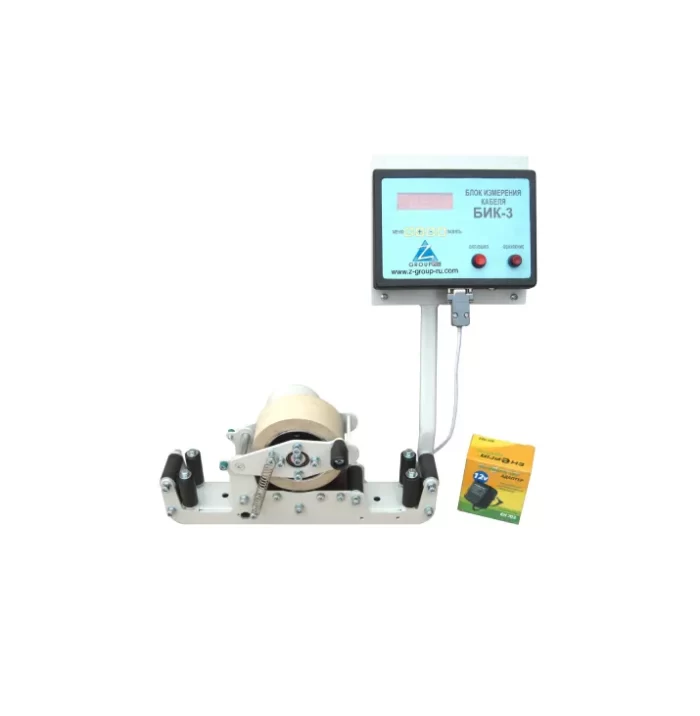

Cable measurement unit BIK-3
Cable measurement unit BIK-3 is specialized equipment designed for precise measurement of cable length and other long materials during their production or in a warehouse. It is used for automated accounting and control of cable products, as well as for length monitoring, ensuring high accuracy and efficiency.
Advantages of the BIK-3 cable measurement unit:
- High precision:
The unit provides accurate cable length measurement, which is critical to meeting quality and safety standards. - Process automation:
The automatic stop system and the ability to connect to the metering system reduce operator involvement and increase work efficiency. - Versatility:
The unit is suitable for working with various types of cables, making it convenient for many types of production. - Ease of operation:
The unit is controlled via a simple and user-friendly interface, making it easy to set up and operate. - Reduction of material loss:
Accurate length measurement and automatic system stop minimize material loss, which is especially important when working with expensive cables and conductors. - Durability and reliability:
The unit is made of durable materials, which ensures its long-term operation with minimal maintenance costs.
Conclusion:
The counter display has five digits, the first three display meters, the last two – centimeters. Thus, the accuracy displayed on the display is 1 cm.
When the counting roller rotates in the opposite direction, the length is counted in the opposite direction, so that an accidental movement of the edge back does not affect the accuracy of the measurement. This also allows you to rewind the edge in the opposite direction without error if the required length is accidentally exceeded.
The unit is powered from the mains via a 12 V adapter, which eliminates electric shock and does not require grounding.
The product is intended for those who sell cables, wires and want to make a device for measuring length on their own.
TECHNICAL SPECIFICATIONS
Cable diameter, max., mm 20
Measurement accuracy, % ± 0.5
Power supply, V 220
Dimensions, L×D×H, mm 480×130×430
Weight, kg 7.4
