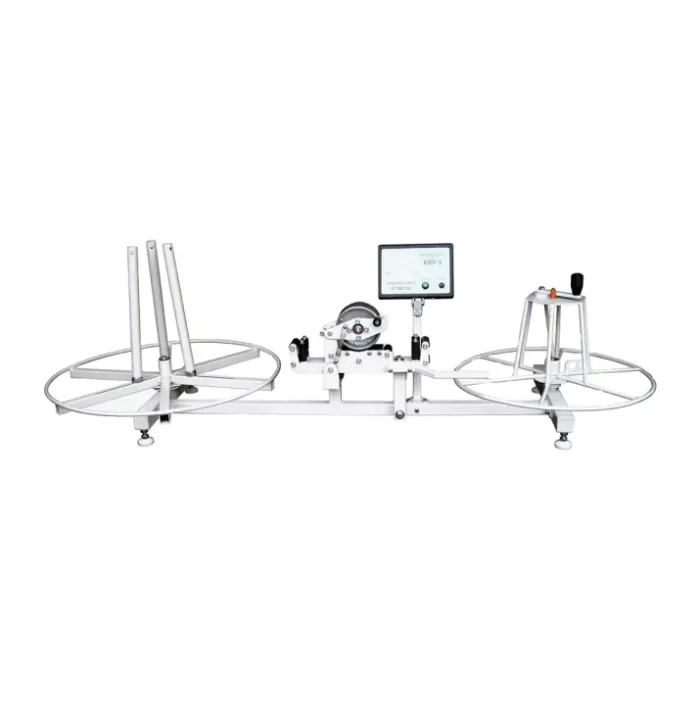

Cable Measuring Device KIU-3

Description

Cable Measuring Device KIU-3

Cable Measuring Device KIU-3 is a specialized equipment designed for precise measurement of length and other characteristics of cables at various stages of their production and processing. It is used in factories and laboratories to control and test cables, wires and other similar materials, which ensures their compliance with standards and technical requirements.

Main characteristics of the KIU-3 cable measuring device:

1. Operating principle: The device operates on the basis of a mechanical and/or electronic system for precise measurement of the cable length, as well as its other parameters, such as diameter, insulation and resistance. This ensures the accuracy of measurements and eliminates possible errors in production processes.
2. Measurement types: KIU-3 is designed to measure:
   • Cable lengths — allows you to accurately measure the length of the cable, which is important for the correct process of cutting and packaging.
   • Cable diameters — the device can measure the diameter of both single conductors and multi-core cables.
3. Ease of use: The device is easy to operate and maintain. Its interface allows for quick adjustment of measurement parameters and switching between different modes. This allows operators to easily and quickly adapt to working with the device.
4. Compatibility with other systems: The KIU-3 cable measuring device can be integrated into existing production lines and quality control systems. It can work in conjunction with other equipment to perform complex tests and analyses.
5. Design and Durability: The device is made of high-quality materials, which ensures its durability and reliability during long-term operation. Durable components make it resistant to external influences and mechanical damage.

Advantages of the KIU-3 cable measuring device:

1. Precise and reliable operation:
   Provides high measurement accuracy, which is critical for manufacturing processes involving cables and wires.
2. Automation of measurements:
   The device automates the process of measuring length and other parameters, minimizing errors and speeding up production processes.
3. Ease of use:
   The device is easy to operate and maintain. It has an intuitive interface and is easy to set up, allowing you to quickly get started.
4. Wide range of applications:
   The KIU-3 cable measuring device can be used at various stages of cable and wire production, from initial cutting to final testing and packaging.
5. Durability:
   Durable components and quality workmanship ensure the unit will last a long time, making it a cost-effective investment.
6. Quality Control Support:
   The device helps manufacturers monitor product quality by meeting strict standards and requirements for cables and wires.

Conclusion:

The device allows you to quickly and accurately measure the required length. The measurement error is no more than ±1%, although with an increase in the measured length, the relative error decreases and, for example, at 100 m the absolute error is up to 10 cm, i.e. only 0.1%.

The counter display has five digits, the first three display meters, the last two – centimeters. Thus, the accuracy displayed on the display is 1 cm. This also allows you to rewind the edge in the opposite direction without error if the required length is accidentally exceeded.

To ensure correct centering of the coil on the pay-off wheel, the design provides for radial movement of the inclined posts centering the coil. Due to this, coils with an internal hole from 80 to 300 mm can be installed on the pay-off wheel.

The edge is rewinded manually.

TECHNICAL SPECIFICATIONS

Cable diameter, max., mm 20

Diameter of the giving wheel, mm 620

Diameter of the receiving wheel, mm 520

Measurement accuracy, % ±0.5

Power supply, V 220

Dimensions (without reels), W×D×H, mm 1550×550×500

Occupied area, sq. m 1.0

Weight, kg 26
