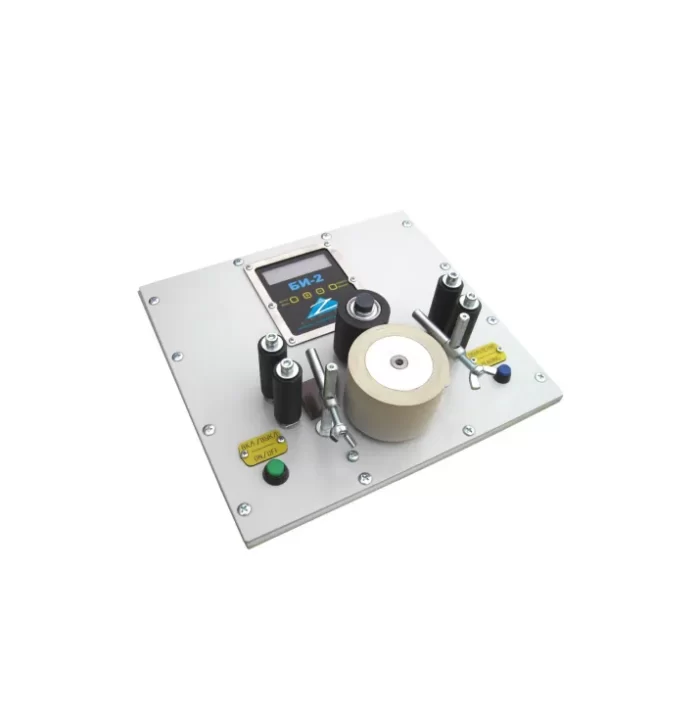

Electronic edge length measuring unit BI-2

Description

Electronic edge length measuring unit BI-2

Electronic edge length measuring unit BI-2 is specialized equipment designed for precise measurement of edge length of various materials during their processing. This unit is used in various industries, such as woodworking, furniture production and others, where it is necessary to control the accuracy and compliance of edge length for further processing or packaging.

Main characteristics of the BI-2 electronic unit:

1. Operating principle: The BI-2 electronic unit uses high-precision sensors to measure the length of the material edge. This process automates control and increases the accuracy of measurements, reducing the human factor and minimizing possible errors during processing.
2. Measuring range: The BI-2 unit has a wide measuring range, allowing it to be used for various types of materials with different thicknesses and edge lengths. This makes it a universal solution for many production processes.
3. Measurement accuracy: The BI-2 electronic unit provides high measurement accuracy, which is critical to maintaining quality standards in the manufacturing process. It can measure with millimeter accuracy, which allows for the production of accurate and high-quality products.
4. Interface: The unit is equipped with an easy-to-use interface that allows operators to easily set up measurement parameters and monitor results on the display. This speeds up the setup and operation of the equipment.
5. Automatic Calibration: The BI-2 electronic unit can be equipped with an automatic calibration system, which allows maintaining measurement accuracy without the need for manual adjustment and intervention.
6. Integration with other systems: The BI-2 block can be integrated with other production process control systems, which allows for automatic control of the production process and increases its efficiency.
7. Reliability: The design of the BI-2 electronic unit is made of high-quality materials, which ensures its durability and stable operation even under intensive production conditions.

Advantages of the BI-2 electronic unit:

1. High measurement accuracy:
   The electronic unit provides accurate and reliable edge length measurements, which helps improve product quality and raise production standards.
2. Process automation:
   Automatic measurement and calibration reduces the time spent on equipment setup and reduces the likelihood of errors, improving work efficiency.
3. Versatility:
   The BI-2 unit is suitable for measuring edge lengths of various materials, making it useful in a variety of industries including woodworking and furniture manufacturing.
4. Ease of use:
   The intuitive interface and automatic setup make the BI-2 unit easy to operate and easy to integrate into production processes.
5. Integration with other systems:
   The ability to integrate with other automated systems allows you to create a unified system for monitoring the production process, improving its overall efficiency.
6. Reliability and durability:
   The electronic unit has a robust design, which ensures its long-term and uninterrupted operation, reducing the need for repair and maintenance.

Application of the BI-2 electronic unit:

• Woodworking:
  The BI-2 block is used for precise measurement of edge length when processing wood materials such as plywood, MDF, chipboard and others.
• Furniture production:
  In furniture manufacturing, this unit is used to control the edge length on various furniture products, which helps maintain high quality and dimensional accuracy.
• Production processes:
  The electronic unit can be used in various production processes where high precision edge length measurements are required to ensure product quality.

Conclusion:

Electronic edge length measuring unit BI-2 is a reliable and highly accurate equipment that significantly improves the quality and accuracy of measurements in production processes. It is suitable for various industries, including woodworking and furniture manufacturing, and provides automation of measurements, which reduces the likelihood of errors and improves work efficiency.

The counter display has five digits, the first three display meters, the last two – centimeters. Thus, the accuracy displayed on the display is 1 cm.

When the counting roller rotates in the opposite direction, the length is counted in the opposite direction, so that an accidental movement of the edge back does not affect the accuracy of the measurement. This also allows you to rewind the edge in the opposite direction without error if the required length is accidentally exceeded.

The unit is powered from the mains via a 12 V adapter, which eliminates electric shock and does not require grounding.

The product is intended for those who sell edge and want to independently make a device for measuring the length of the edge.
