Length counter SD-11

Description

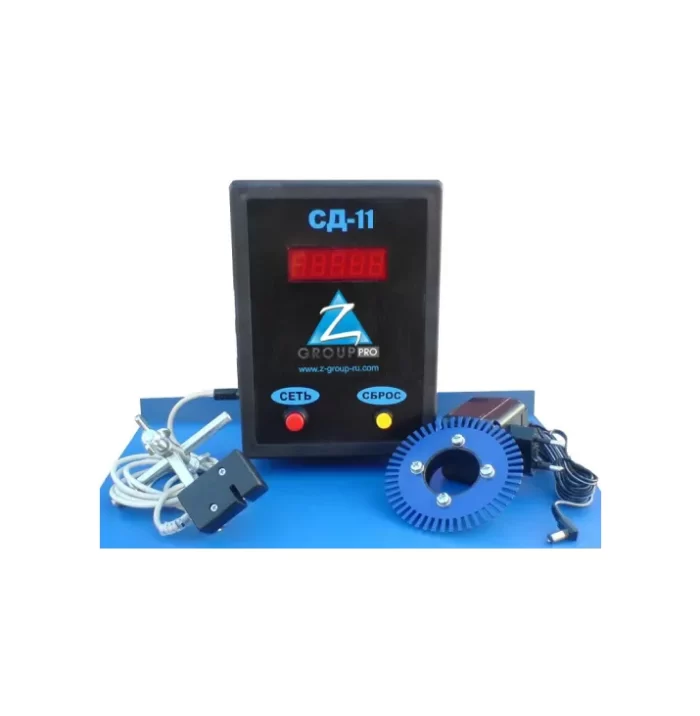

Length counter SD-11

The SD-11 length counter is a high-tech equipment designed for accurate measurement and length recording of materials such as fabric, film, tape, cable, wire and other continuous materials. The machine is widely used in manufacturing and processing industries for automatic measurement and length control of products.

Main characteristics of the SD-11 length counter:

1. Operating principle: The SD-11 length counter operates on the basis of a mechanism that tracks the progress of the material through a system of rollers or sensors, providing accurate length measurement. It can work with various types of material, regardless of its thickness and structure.
2. Measurement accuracy: The machine provides high accuracy in measuring the length of the material. Depending on the model, the accuracy can reach several millimeters, which makes it ideal for working with products that require high accuracy.
3. Operating speed: The SD-11 length counter can operate at different speeds depending on the type of material and production requirements. It enables fast processing of large volumes of material, which increases the productivity of the line.
4. Process automation: The machine is equipped with an automatic stop system that can be activated when the set length of the material is reached, which helps to minimize errors and increase productivity.
5. Versatility: The SD-11 length counter can be used to measure various types of materials, including textiles, film, paper rolls, plastic products, cables and other long products.
6. Display and control: The machine is equipped with a display that shows information about the length of the material, as well as other important operating parameters. The device is controlled via an intuitive interface, which simplifies the setup and use of the equipment.
7. Safety mechanism: The machine is equipped with safety functions such as automatic overload shutdown, protective covers and sensors to prevent errors during operation.

Advantages of the SD-11 length counter:

1. High precision:
   The counter provides accurate length measurements, which is important for product quality control and compliance with standards.
2. Increased productivity:
   By automating processes such as stopping at a given length, the machine increases overall productivity and reduces the workload on operators.
3. Versatility:
   The machine is suitable for working with a variety of materials, which allows it to be used in various industries, from textile to cable industry.
4. Ease of operation:
   The device is equipped with a user-friendly display and control panel, making it easy to use and configure.
5. Error reduction:
   Thanks to automatic systems, errors in length accounting are minimized, which improves the quality of manufactured products and reduces losses.
6. Low operating costs:
   The SD-11 length counter is highly reliable and durable, which reduces the cost of its maintenance and operation.

Application of the SD-11 length counter:

• Textile industry:
  Used for precise measurement of length of fabric, rolls and other textile products.
• Plastic and film industry:
  It is used to measure the length of film, plastic, and other long materials.
• Cable and Wire Manufacturing: used to measure the length of cables, wires and other similar materials during their manufacturing process.
• Paper and Cardboard Manufacturing:
  Used to measure the length of rolls of paper, cardboard, and other materials that are supplied in roll form.

Conclusion:

Length counter SD-11 is a reliable and accurate equipment for measuring the length of various types of materials. It is ideal for use in various industries, including textile, plastic, cable and many others. High measurement accuracy, operating speed, ease of operation and versatility make this machine an excellent choice for automating processes and increasing productivity.

The counter software allows the following functions to be performed:

1. Correction depending on the diameter of the counting roller.
2. Correction based on the results of test measurements.
3. Programming the counter for 10 lengths, each of which can be changed.
4. Emitting a signal after reaching the programmed length, this signal can control, for example, stopping, cutting, giving a sound or light signal.
5. The counter roller is held in the non-working position by a lock.

When the counter roller rotates in the opposite direction, the length is counted in the opposite direction, so that accidental movement of the material backwards does not affect the accuracy of the measurement.

The counter is powered from the mains via a 12 V adapter, which eliminates electric shock and does not require grounding. It is possible to order from 24 volts or from another voltage source.
