Rewinder UPIC-12

Description

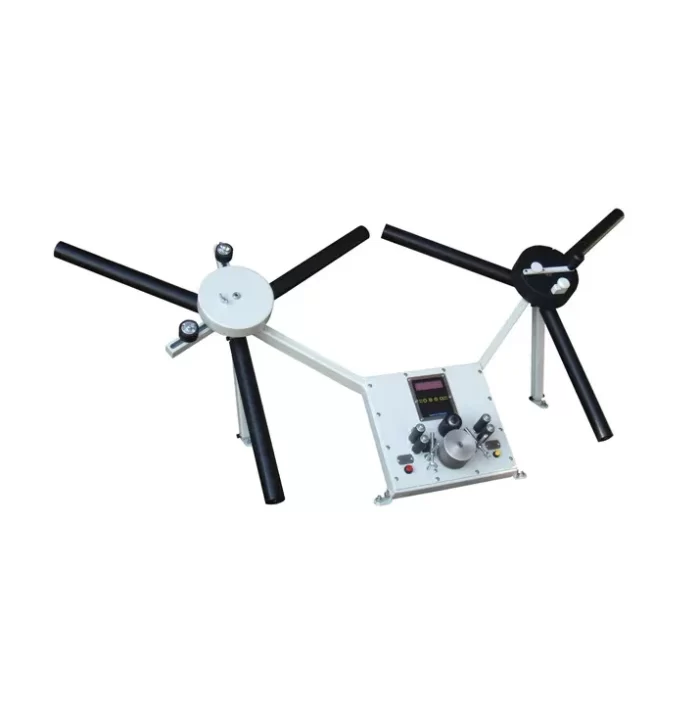

Rewinder UPIC-12

Rewinder UPIC-12 is a high-tech equipment designed for rewinding various materials such as wires, cables, threads and other compressible or windable materials onto reels or drums. It provides reliable and efficient rewinding with precise control of speed, length and tension, making it ideal for the production and recycling of cables and other products.

Main characteristics of the UPIC-12 rewinding device:

1. Operating principle: UPIC-12 operates on the basis of a motor mechanism and a system of reels that ensure uniform winding of the material. This process automates the rewinding, minimizing manual labor and increasing overall productivity. The device can work with various types of materials, which makes it a universal solution for many industries.
2. Rewinding range: The device supports a wide range of lengths and diameters of rewindable materials. This allows it to be used to handle materials with different thicknesses and lengths, including thin wires and thicker cables.
3. Rewinding speed: UPIC-12 is equipped with a rewinding speed adjustment system, which allows you to fine-tune the process depending on the type of material and the requirements for the final result. High rewinding speed increases the productivity of the equipment.
4. Tension control: The device is equipped with a tension control system that ensures uniform tension of the material during rewinding. This prevents possible damage to the material and ensures its proper distribution on the reel.
5. Control and setup: UPIC-12 has an intuitive interface for setting operating parameters such as speed, tension and winding length. This allows the operator to quickly adjust the device for different tasks and control the process in real time.
6. Design: The rewinding device is made of high-quality and durable materials, which ensures its durability and reliability during intensive use. It is also equipped with protective mechanisms that prevent possible breakdowns and emergency situations.
7. Energy Saving: UPIC-12 uses energy efficiently, which helps to reduce operating costs and improve economic efficiency.

Advantages of the UPIC-12 rewinding device:

1. High performance:
   The device provides a fast and efficient rewinding process, which increases the overall productivity of the enterprise.
2. Accuracy and reliability:
   High precision in tension control and rewinding speed ensures uniform winding without damaging the material, which is important for the quality of the final product.
3. Versatility:
   The UPIC-12 is suitable for working with a variety of materials including wires, cables, threads and other similar materials, making it ideal for a variety of industries.
4. Process automation:
   The device is equipped with an automatic control system, which reduces the need for manual intervention and increases overall operating efficiency.
5. Ease of operation:
   The intuitive interface and ease of setup make the device easy to use and ensure quick transition from one task to another.
6. Durability and reliability:
   The design of the device guarantees its long-term and uninterrupted operation, which reduces maintenance and repair costs.

Application of the UPIC-12 rewinding device:

• Cable industry:
  UPIC-12 is used for rewinding cables and wires, which allows to optimize the process of packaging and storage of products.
• Textile production:
  In the textile industry, the device is used for rewinding threads and fabrics, which facilitates subsequent processing of materials.
• Production processes:
  The rewinding machine can be used in various industries including packaging, recycling and material distribution.

Conclusion:

The Rewinder UPIC-12 is a highly efficient and versatile machine that significantly improves rewinding processes in various manufacturing and processing industries. Its high performance, precision and reliability make it an ideal choice for companies looking to improve the efficiency and quality of their operations.

The device allows you to quickly and accurately measure the required length. The measurement error is no more than ±1%, although with an increase in the measured length, the relative error decreases and, for example, at 100 m, the absolute error is up to 10 cm, i.e. only 0.1%.

The counter display has five digits, the first three display meters, the last two – centimeters. Thus, the accuracy displayed on the display is 1 cm.

When the counting roller rotates in the opposite direction, the length is counted in the opposite direction, i.e. random backward movement of the edge does not affect the accuracy of the measurement.

The inclined arrangement of the reels allows you to reduce the area occupied by the device. For rewinding, reels of maximum diameter (up to 800 mm) can be installed on the device, and the rewound reel can have the same diameter.

The installed pay-off reels can have different internal diameters (from 80 to 350 mm). To ensure this, the design provides three methods for centering the rewound bobbins.
The edge is rewound manually. To facilitate the rewinding of large diameter bobbins, the winding disk handle can be reinstalled in such a way that the force application lever increases, which makes the rewinding process easy and comfortable.

The device is powered from the mains via a 12 V adapter, which eliminates electric shock and does not require grounding.

The product is intended for those who sell edging in significant quantities; it will significantly speed up and facilitate the process of measuring the edge length.

Application of the UPIC-12 rewinding device:

• Electronics industry: Rewinding of cables and wires for further use in the production of electronics and electrical devices.
• Furniture manufacturing: Used for winding and packaging fabric or other materials used in the furniture industry.
• Packaging Manufacturing: In the packaging industry, the UPIC-12 is used for rewinding film, paper and other packaging materials.
• Textile industry: The device is actively used for thread rewinding, which allows for efficient and high-quality preparation of material for further use in the production of textiles.
• Cable Manufacturing: In the cable industry, a rewinding device allows you to process wires and cables, making them easier to pack and store on reels.

Conclusion:

The UPIC-12 rewinding device is a modern and highly efficient equipment for rewinding various materials. This device provides high accuracy, high speed of operation and minimal maintenance costs, which makes it an ideal choice for enterprises that need high-quality and reliable solutions for rewinding cables, wires, threads and other materials.
